Plastic thermoforming has become one of the most versatile and widely adopted manufacturing processes in industries ranging from packaging and consumer goods to automotive and medical devices. At the center of this process lies the thermoforming machine, which enables the heating, shaping, and trimming of plastic sheets into precise, high-quality products.
Understanding plastic thermoforming is crucial for manufacturers aiming to improve production efficiency, reduce waste, and achieve consistent product quality. The process involves more than just the machine itself; it requires knowledge of material properties, forming techniques, mould selection, and auxiliary equipment to optimize the overall workflow.
This article aims to provide a comprehensive analysis of plastic thermoforming, including the types of forming, the methods used, and the equipment associated with thermoforming machines. Additionally, it guides manufacturers on selecting the right equipment and implementing best practices to enhance productivity, reduce defects, and maximize return on investment.
Thermoforming is a manufacturing process where a plastic sheet is heated until it becomes pliable, then shaped over a mould using vacuum, pressure, or mechanical force. Once cooled, the plastic retains the shape of the mould and can be trimmed to create the final product.

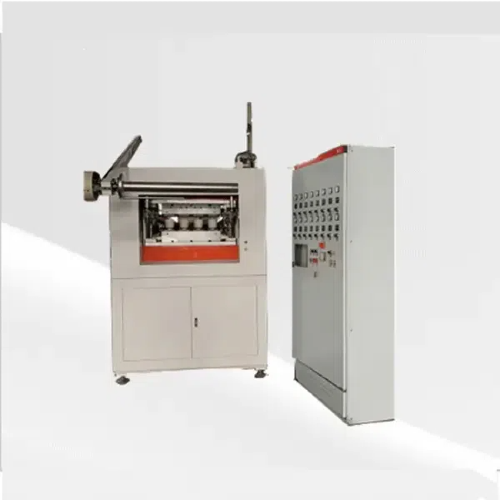

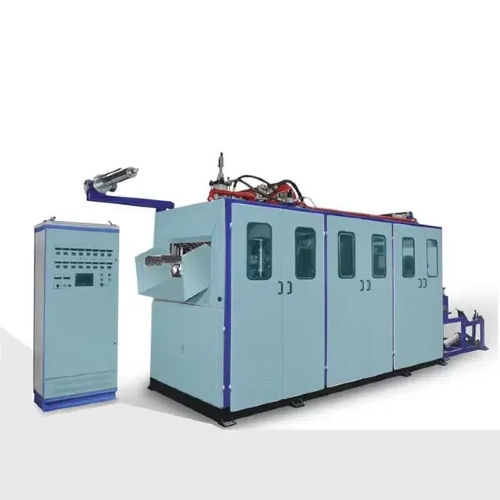

A thermoforming machine plays a central role in this process, offering precise control over temperature, forming pressure, and cycle timing. These machines ensure uniform heating, reduce material waste, and deliver consistent results across production batches.
The process is widely used due to its flexibility, cost-effectiveness, and ability to produce a broad range of product sizes and designs. From shallow trays and packaging components to deep-draw automotive panels, thermoforming machines handle diverse applications efficiently.
Plastic materials differ in terms of heat resistance, flexibility, clarity, and durability. Selecting the right material is essential for product quality and process efficiency.
Material | Characteristics | Typical Applications |
PS (Polystyrene) | Lightweight, clear, cost-effective | Disposable trays, containers |
PVC (Polyvinyl Chloride) | Flexible, chemical resistant | Medical packaging, tubing |
PET (Polyethylene Terephthalate) | High strength, heat-resistant | Beverage bottles, clamshell packaging |
PP (Polypropylene) | Durable, chemical-resistant | Industrial trays, lids, automotive parts |
The choice of material affects heating parameters, forming pressure, cycle time, and mould release strategies. A well-calibrated thermoforming machine accommodates these material variations, ensuring optimal product quality.
Thermoforming machines are designed to integrate with automated production lines. They:
Provide precise sheet heating and forming control
Minimize material waste through efficient cycle management
Enable seamless integration with stacking, trimming, and packaging systems
Reduce labor costs and enhance productivity
By optimizing these machines, manufacturers can achieve higher throughput, consistent quality, and cost savings.
Thermoforming can be classified into several types, each suited for specific product designs and production requirements.
Process: A heated plastic sheet is drawn onto a mould using vacuum pressure.
Applications: Packaging trays, blister packs, signage.
Advantages: Simple, cost-effective, suitable for thin-sheet products.
Limitations: Less precise for deep or complex shapes.
Notes: Often used for small to medium production runs; mould design is straightforward and low-cost.
Process: Compressed air pushes the heated sheet against the mould surface.
Applications: Automotive panels, industrial components.
Advantages: Produces sharper details, better surface finish than vacuum forming.
Limitations: Requires higher energy consumption and higher-quality moulds.
Notes: Essential for applications requiring dimensional accuracy and intricate surface details.
Process: A plug stretches the heated sheet into the mould before vacuum or pressure forming.
Applications: Deep-draw containers, complex shapes requiring uniform wall thickness.
Advantages: Reduces thinning, improves product strength and consistency.
Limitations: Slower cycle times, higher equipment investment.
Notes: Widely used for products with critical wall thickness requirements or complex geometries.
Process: Two heated sheets are formed and fused together to create hollow or double-walled parts.
Applications: Large containers, industrial tanks, automotive components.
Advantages: Eliminates welding steps, produces robust hollow parts.
Limitations: Complex process requiring precise timing and alignment.
Notes: Ideal for heavy-duty applications or structural products.
Uniform heating is critical to achieving high-quality thermoformed products. Heating methods include:
Infrared Heating: Rapid and effective for thin sheets; requires monitoring to prevent uneven heating.
Convection/Oven Heating: Provides uniform heat distribution, suitable for thicker sheets.
Contact Heating: Direct contact ensures quick heating, but must be carefully controlled to avoid hot spots.
Proper sheet heating prevents thinning, warping, and incomplete forming, reducing scrap and improving production consistency.
Vacuum Forming: Best for shallow or simple parts.
Pressure Forming: Enhances detail and surface quality.
Plug Assist Forming: Ensures uniform wall thickness in deep parts.
Each forming method is selected based on product design, material, and production volume.
Post-forming processes refine products to meet dimensional and quality standards:
Die Cutting: High-speed method for standard shapes, suitable for large-volume production.
CNC Routing: Provides precision for custom shapes and detailed features.
Laser Cutting: Clean edges with minimal material stress, ideal for delicate components.
Efficient trimming reduces waste and ensures finished products meet exact specifications.
Efficient thermoforming production requires more than the main machine. Key supporting equipment includes:
Stacking stations automatically align and stack finished products, improving workflow efficiency and reducing labor costs. They are essential in high-speed production lines where manual stacking is impractical.
Moulds determine product shape, wall thickness, and surface detail. Options include:
Mould Type | Description | Typical Use |
Single-Cavity | Produces one product per cycle | Prototyping, small batches |
Multi-Cavity | Produces multiple products per cycle | High-volume production |
Custom | Designed for unique or complex products | Specialty or deep-draw parts |
Proper mould selection ensures product accuracy, reduces forming defects, and extends mould life.
Conveyors and automated feeders streamline the transport of raw sheets and finished products. Synchronization with the thermoforming machine ensures continuous operation and minimizes bottlenecks.
Advanced heating systems maintain consistent sheet pliability, essential for uniform forming. Options include infrared panels, convection ovens, or contact heaters, selected based on material type and sheet thickness.
Choosing the right thermoforming machine depends on multiple factors:
Product Design: Shallow trays, deep-draw containers, or hollow parts require specific forming techniques.
Production Volume: High-volume operations benefit from multi-cavity moulds and automation.
Material Requirements: Different plastics demand precise heating profiles and forming pressures.
Automation Level: Robotic handling, stacking stations, and conveyors reduce labor and enhance efficiency.
Return on Investment: Equipment cost must be balanced with productivity gains and reduced scrap rates.
Selecting compatible accessories like moulds, stacking stations, and heating systems ensures seamless operation and consistent quality.
Even optimized processes can encounter challenges:
Material Deformation: Uneven heating or excessive forming pressure can cause warping.
Surface Defects: Scratches, sticking, or uneven textures may occur due to mould wear or improper release agents.
Mould Release Issues: Products sticking to the mould may lead to damage or downtime.
Equipment Downtime: Poor maintenance can cause mechanical failures or inconsistent forming cycles.
Addressing these challenges requires proper training, regular preventive maintenance, and careful monitoring of process parameters.
Plastic thermoforming, encompassing types, methods, and related equipment, is a highly efficient and versatile manufacturing process. Selecting the right thermoforming machine, compatible moulds, and supporting systems is critical for achieving high-quality products, operational efficiency, and cost savings.
For manufacturers seeking professional guidance, Wenzhou Yicai Machinery Technology Co., Ltd. offers advanced thermoforming machines, customized mould solutions, and expert consultation to optimize production lines and ensure consistent, high-quality output.
