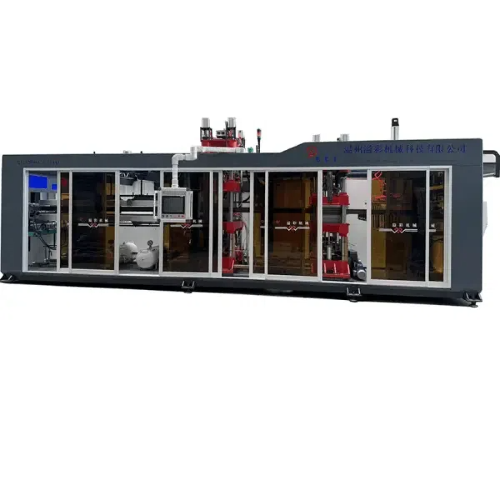

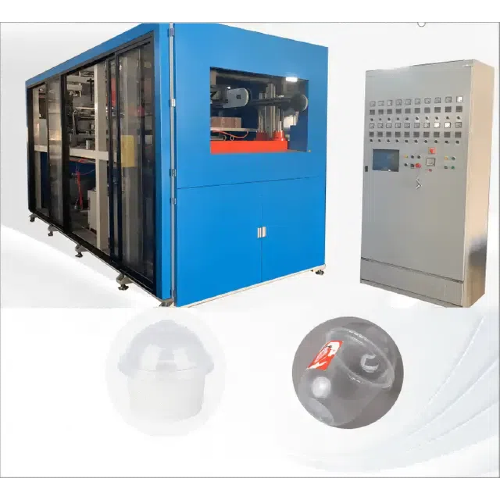

A thermoforming machine is a versatile piece of equipment widely used in packaging, automotive, and consumer product industries. It works by heating plastic sheets until they are pliable, forming them into specific shapes using a mould, and then trimming the final product. Among all components of a thermoforming machine, the mould plays a critical role in determining product quality, production efficiency, and operational cost.
Selecting and using the right mould for a thermoforming machine is therefore essential. A poorly designed or improperly maintained mould can lead to defects, lower output, and increased expenses. This guide will provide a comprehensive overview of thermoforming machine moulds, including types, selection factors, design and manufacturing considerations, proper usage, maintenance, and troubleshooting strategies. By following this guide, manufacturers can optimize production, enhance product quality, and extend mould lifespan.
Understanding Thermoforming Machine Moulds
What is a Thermoforming Machine Mould?
A thermoforming machine mould is a precision tool used to shape heated plastic sheets into the desired product form. The mould determines the dimensions, contours, and surface quality of the finished product. In essence, the mould is the blueprint that guides the thermoforming process, ensuring consistency and accuracy in mass production.
Types of Thermoforming Machine Moulds
Thermoforming machine moulds can be classified into several types based on their application and structure:
Single-Cavity Moulds
Produces one product per cycle.
Ideal for custom or small-batch production.
Multi-Cavity Moulds
Produces multiple products simultaneously.
Enhances efficiency in large-scale manufacturing.
Custom Moulds
Designed for specific product shapes, features, or branding requirements.
Often used for unique or complex designs.
Mould Materials
The choice of mould material significantly affects durability, precision, and cost:
Material |
Characteristics |
Typical Applications |
Aluminum |
Lightweight, easy to machine, good thermal conductivity |
Small to medium batches, rapid prototyping |
Steel |
Highly durable, resistant to wear, longer lifespan |
Large-scale production, high-precision parts |
Composite |
Cost-effective, moderate durability |
Low-volume or specialty products |
Each material has trade-offs between cost, production volume, and product complexity. Aluminum moulds are ideal for prototyping and short runs, while steel moulds suit high-volume production where durability is critical.
Factors to Consider When Selecting a Mould
Selecting the right mould for a thermoforming machine requires careful evaluation of multiple factors.
Product Dimensions and Shape
The size and complexity of the product will determine the mould’s design. Larger products may require thicker materials and stronger moulds, while intricate designs may necessitate precision machining and custom features.
Material Type and Thickness
Different plastic materials behave differently under heat and pressure. For example, PET requires higher forming temperatures than PS. Moulds must accommodate the specific material properties to ensure proper forming and reduce defects like warping or stretching.
Production Volume
High-volume production demands durable moulds capable of withstanding repeated cycles without significant wear. Multi-cavity steel moulds are often preferred for high-output operations, while aluminum or composite moulds may be sufficient for low-volume runs.
Tolerance and Precision
Products requiring tight dimensional tolerance or high-quality surface finishes necessitate moulds with precise machining and finishing. Features such as fine textures, logos, or embossed patterns must be carefully integrated into the mould design.
Budget and Cost-Effectiveness
While steel moulds offer longevity, they are more expensive upfront. Manufacturers must balance initial investment against expected production volume and lifecycle cost to achieve the most cost-effective solution.
Factor |
Considerations |
Product Size & Shape |
Complex designs may need custom moulds |
Material Type & Thickness |
Different plastics require different mould specifications |
Production Volume |
High-volume may require durable steel or multi-cavity moulds |
Precision Requirements |
Tight tolerances need high-precision machining |
Budget |
Balance cost with expected lifespan and output |
Design and Manufacturing of Thermoforming Machine Moulds
Mould Design Process
The design phase is critical for ensuring that a mould will function correctly in a thermoforming machine. The typical design process includes:
CAD Modeling
Create a detailed digital model of the mould and product.
Simulate forming process to predict material flow and potential defects.
3D Simulation and Testing
Virtual tests allow engineers to identify issues like thinning, stretching, or insufficient forming before production.
Prototype Verification
A prototype mould can be produced to validate the design.
Adjustments are made to optimize performance and product quality.
Mould Manufacturing Techniques
The precision of a mould directly affects product quality. Common manufacturing techniques include:
CNC Machining: High-precision cutting and shaping of metal moulds.
Polishing: Ensures smooth surfaces and prevents sticking of plastic material.
Surface Treatments: Hardening or coating to increase durability and reduce wear.
Key Design Considerations
Draft Angle: Ensures easy removal of products from the mould.
Ventilation: Prevents air bubbles and ensures proper forming.
Cooling System: Controls temperature for consistent product quality.
Alignment Features: Guides multi-cavity moulds to prevent misalignment.
Design Feature |
Purpose |
Draft Angle |
Facilitates easy demolding |
Vent Holes |
Prevents trapped air during forming |
Cooling Channels |
Maintains uniform temperature |
Alignment Pins |
Ensures accurate multi-cavity production |
Proper Use and Maintenance of Moulds
Installation and Setup
Correct installation is vital for a thermoforming machine to function efficiently. Ensure that the mould is properly aligned and securely mounted. Any misalignment can cause product defects or damage the machine.
Daily Operation Tips
Operate the machine within recommended speed and temperature limits.
Avoid excessive pressure that could damage the mould or the product.
Monitor forming cycles for consistent product quality.
Cleaning and Lubrication
Regular cleaning prevents residue buildup, which can affect product quality and mould lifespan. Lubricate moving parts and inspect for wear to avoid mechanical failures.
Routine Inspections
Schedule periodic inspections to detect cracks, warping, or surface damage. Early detection allows for timely repairs, reducing downtime and cost.
Best Practices for Longevity
Store moulds in a dry, controlled environment.
Avoid rapid temperature changes to prevent warping.
Keep detailed maintenance records for predictive upkeep.
Common Issues and Troubleshooting
Even with proper design and maintenance, mould-related issues can occur:
Product Defects
Warping or Shrinking: Caused by uneven heating or incorrect material thickness.
Surface Imperfections: Dust, scratches, or poor mould finishing.
Incomplete Forming: Improper mould temperature or pressure.
Mould Wear and Damage
Solutions and Recommendations
Adjust machine temperature and forming speed.
Re-polish or repair mould surfaces.
Replace worn components promptly to avoid affecting production.
Issue |
Possible Cause |
Recommended Solution |
Warping or Shrinking |
Uneven heating or sheet thickness |
Adjust temperature, use correct material |
Surface Imperfections |
Dust or poor mould finishing |
Clean mould, polish surface |
Incomplete Forming |
Incorrect pressure or temperature |
Calibrate machine, adjust cycle parameters |
Mould Cracks or Wear |
Overuse or mechanical stress |
Repair or replace mould |
Conclusion
Selecting and using the right thermoforming machine moulds is critical for achieving high-quality products, efficient production, and cost-effective operation. By understanding the types of moulds, key selection factors, design and manufacturing processes, proper usage, and maintenance practices, manufacturers can optimize their thermoforming operations.
Investing in high-quality moulds and maintaining them diligently ensures consistent product quality, reduces downtime, and extends the equipment’s lifespan. Whether producing small batches or high-volume orders, careful consideration of mould selection and management is essential for any successful thermoforming operation.
For businesses looking to enhance their thermoforming capabilities, Wenzhou Yicai Machinery Technology Co., Ltd. offers professional consultation, custom mould design, and a range of high-performance thermoforming machines to meet diverse production needs.
