Thermoforming machines are widely used in the packaging and manufacturing industries for producing high-quality plastic products efficiently. While the thermoforming process involves heating, forming, and cutting plastic sheets, one crucial yet often overlooked component is the stacking station. A stacking station plays a vital role in organizing and arranging thermoformed products after they are removed from the mold. Without a proper stacking station, the efficiency and automation of a thermoforming machine can be significantly compromised.
In this article, we will explore how a stacking station works within a thermoforming machine, its types, advantages, common issues, and best practices to optimize production. By understanding this, manufacturers can enhance workflow efficiency, reduce labor costs, and maintain product quality.

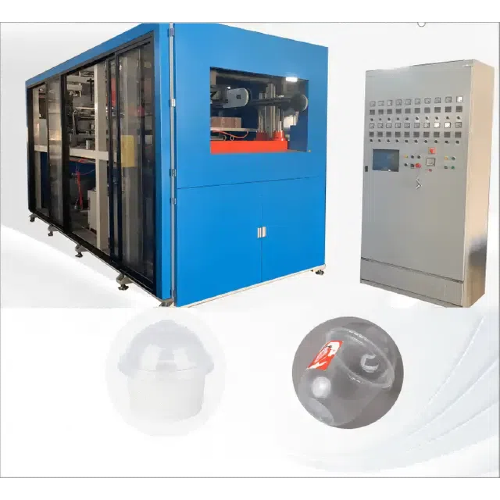

Before diving into the stacking station, it’s essential to understand the overall operation of a thermoforming machine.
A thermoforming machine primarily works through the following steps:
Heating: Plastic sheets are heated to a pliable temperature.
Forming: The heated sheet is molded into the desired shape using vacuum, pressure, or mechanical force.
Trimming/Cutting: Excess material is trimmed off to produce the final product.
Stacking: Finished products are organized and prepared for packaging or shipping, typically handled by a stacking station.
Component | Function |
Heating System | Softens plastic sheets to the required temperature |
Forming Mold | Shapes the plastic sheet into the desired design |
Cutting/Trimming System | Removes excess material and ensures uniform product shape |
Stacking Station | Collects, aligns, and stacks finished products for efficient handling |
The stacking station is the final link in the production chain, ensuring smooth transition from manufacturing to packaging.

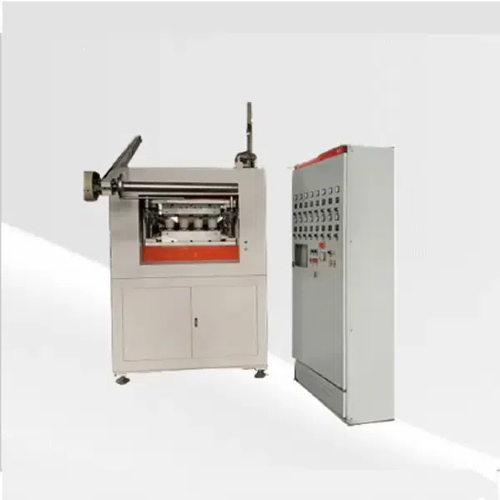

A stacking station is a mechanical system attached to a thermoforming machine that collects finished products, aligns them, and stacks them neatly for further handling. It automates the process that was traditionally done manually, reducing labor and minimizing errors.
There are different types of stacking stations designed to meet various production needs:
Manual Stacking Station
Products are manually collected and stacked.
Suitable for small-scale production but labor-intensive.
Semi-Automatic Stacking Station
Uses basic mechanical systems to align and partially stack products.
Requires some operator intervention.
Fully Automatic Stacking Station
Products are automatically aligned, counted, and stacked.
Ideal for high-volume production with minimal labor input.
Type | Automation Level | Suitable Production Scale | Pros | Cons |
Manual | Low | Small | Low cost, simple | Labor-intensive |
Semi-Automatic | Medium | Medium | Reduced manual effort | Partial automation |
Fully Automatic | High | Large | High efficiency, minimal labor | Higher initial cost |
The working principle of a stacking station is straightforward but critical for the efficiency of a thermoforming machine. Below is a step-by-step explanation:
After thermoforming, the plastic products are cut and removed from the forming mold. Depending on the machine configuration, this may be done via mechanical ejectors or vacuum systems.
Finished products are transported from the cutting area to the stacking station using conveyors, robotic arms, or pneumatic systems. Proper alignment during transfer is essential to avoid jams or misalignment.
The stacking station uses sensors and mechanical guides to ensure each product is aligned correctly. For delicate products, vacuum alignment may be employed to prevent deformation.
Aligned products are then stacked in a precise order. Fully automatic systems can stack products in layers or columns according to preset configurations, ensuring uniformity.
Once stacked, products are either moved to packaging systems, palletizers, or storage areas. Some advanced stacking stations integrate with automated packaging lines for seamless operation.
Step | Description |
Product Removal | Extracts formed products from mold using ejectors or vacuum systems |
Transfer to Stacker | Moves products via conveyor or robotic arm |
Alignment | Ensures products are positioned correctly using sensors or guides |
Stacking | Arranges products in uniform layers or columns |
Output | Transfers stacked products to packaging or storage |
Integrating a stacking station with a thermoforming machine offers numerous benefits:
Improved Production Efficiency
Automates the labor-intensive task of stacking.
Reduces downtime and speeds up product handling.
Consistent Product Quality
Ensures products are aligned and stacked neatly.
Prevents deformation or damage during manual handling.
Labor Cost Reduction
Minimizes the need for manual operators.
Frees personnel for other production tasks.
Seamless Integration with Automated Lines
Compatible with robotic packaging, palletizing, and transport systems.
Supports fully automated production workflows.
Flexibility
Can handle different product sizes, shapes, and materials with minor adjustments.
Even advanced stacking stations can encounter issues. Awareness and timely maintenance are key to ensuring smooth operation.
Causes: Conveyor speed mismatch, sensor malfunction, product warping.
Solutions: Adjust conveyor speed, recalibrate sensors, ensure correct mold temperature.
Causes: Excessive pressure, vacuum suction issues, delicate material handling.
Solutions: Fine-tune stacking pressure, maintain vacuum system, adjust product spacing.
Causes: Mechanical wear, lack of lubrication, jammed products.
Solutions: Implement regular maintenance schedule, clean and lubricate moving parts, remove obstructions promptly.
Common Issue | Possible Cause | Recommended Solution |
Misalignment | Sensor failure or speed mismatch | Recalibrate sensors, adjust conveyor speed |
Product Damage | Excessive stacking force | Reduce force, adjust spacing |
Downtime | Mechanical wear or jam | Regular maintenance, remove obstructions, lubrication |
Ensuring the optimal performance of a stacking station is essential for maximizing the efficiency of a thermoforming machine. The first and most important step is regular maintenance. All moving parts, including conveyors, mechanical arms, and rollers, should be cleaned, lubricated, and inspected frequently to prevent wear and reduce the risk of unexpected downtime.
Sensor calibration is another critical practice. Accurate sensor detection ensures that products are correctly aligned and stacked without misplacement or jamming. Equally important is conveyor speed matching, which requires synchronizing the stacking station’s speed with the output of the thermoforming machine to maintain smooth and continuous production.
Using adjustable guides can greatly enhance flexibility, allowing the stacking station to handle different product sizes and shapes with minimal manual adjustment. Finally, employee training plays a key role in maintaining efficiency. Operators should be familiar with troubleshooting common stacking issues, performing minor adjustments, and understanding safety protocols. By following these best practices, manufacturers can significantly improve productivity, reduce errors, and extend the lifespan of their equipment.
The stacking station is an essential part of any thermoforming machine, serving as the crucial link between production and packaging. By automating the alignment and stacking of products, manufacturers can significantly improve efficiency, maintain consistent quality, and reduce labor costs. Whether your operation is small-scale or part of a fully automated production line, understanding the working principle of a stacking station and ensuring proper maintenance is key to maximizing the performance of your thermoforming equipment.
For businesses looking to enhance their production workflow, investing in a high-quality stacking station is more than just automation—it’s a strategic move to streamline operations and boost overall output. Wenzhou Yicai Machinery Technology Co., Ltd. offers a comprehensive range of thermoforming machines and advanced stacking solutions tailored to meet diverse production needs. With years of experience and a commitment to innovation, Yicai Machinery provides reliable, high-performance equipment designed to optimize every step of the thermoforming process.
To explore their cutting-edge thermoforming machines, learn more about stacking stations, or get personalized consultation for your production line, you can visit Wenzhou Yicai Machinery Technology Co., Ltd. and connect with their expert team today.
