Thermoforming is a widely used process in manufacturing where a plastic sheet is heated to a pliable forming temperature, shaped in a mold, and trimmed to create a desired shape. The thermoforming machine plays a central role in this process, ensuring precise heating, molding, and trimming of plastic materials. This article aims to explore the principles behind thermoforming machines, explaining how they work, their components, and how the process has evolved to meet modern manufacturing needs.
Thermoforming machines are designed to take plastic sheets and turn them into molded products through a series of controlled steps. The main function of a thermoforming machine is to heat a plastic sheet to a temperature that makes it flexible, then form it into a specific shape using pressure, vacuum, or a combination of both. After the sheet is formed, the part is cooled and trimmed to its final shape.
Vacuum Thermoforming Machines: These use a vacuum to draw the heated plastic sheet into a mold. The plastic conforms to the mold’s shape when suction is applied.
Pressure Thermoforming Machines: These use compressed air to push the heated plastic sheet into a mold.
Matched Mold Thermoforming Machines: This method uses two molds, one above and one below, that meet to form the plastic sheet in the shape of the mold cavity.
The first step in the thermoforming process involves heating the plastic sheet to a temperature where it becomes pliable enough to form. This is usually done in an oven or a pre-heating chamber in the thermoforming machine.
Principle of Heat Transfer: Thermoforming machines use convection or infrared heaters to heat plastic sheets. Convection heaters warm the air around the sheet, while infrared heaters directly heat the surface of the sheet, accelerating the process.
Temperature Control: Temperature regulation is critical, as heating too much can cause the plastic to degrade, while too little heat results in improper forming. Thermoforming machines use sensors and controllers to maintain consistent heating throughout the process.
Once the sheet is heated to its forming temperature, the next stage is the actual forming. The plastic is either vacuumed or pressed into the mold cavity.
Vacuum Forming: In this process, a vacuum is created in the mold, causing the heated sheet to stretch and conform to the shape of the mold. The principle of pressure difference is used here, as the atmospheric pressure pushes the sheet into the mold.
Pressure Forming: This process uses pressurized air to force the heated sheet into the mold. This method is often used when a more detailed or intricate shape is required, as it ensures the material fills all the cavities of the mold.
Matched Mold Forming: This process involves two molds, one above and one below the sheet. The two molds come together, and the plastic is pressed between them to form the desired shape.
Once the sheet has been formed into the mold, it needs to be cooled and trimmed. Cooling is important to ensure the plastic retains its shape once it has been removed from the mold.
Cooling: The cooled mold ensures that the plastic maintains the desired form. Cooling can be achieved by air, water, or both, depending on the material being used and the complexity of the part.
Trimming: After cooling, the formed part is often too large, so it must be trimmed to the desired final shape. Thermoforming machines usually feature a trimming station, which uses either a mechanical cutting tool or a laser to remove excess material.
Modern thermoforming machines feature sophisticated control systems that automate various stages of the process. This ensures consistency, reduces human error, and enhances productivity.
Temperature Control Systems: These systems monitor the temperature of the plastic sheet throughout the heating phase to ensure uniformity.
Pressure and Vacuum Control: Advanced machines include sensors that continuously monitor and adjust the vacuum or pressure to ensure that the forming process is precise and consistent.
Trimming and Ejection: The trimming process is often automated, and thermoforming machines are equipped with robotic systems that remove the finished product from the mold and transport it to the next phase of production.
Heating Section: This part of the machine is responsible for heating the plastic sheet to the required temperature. It is often equipped with infrared heaters or convection ovens.
Forming Station: This section involves the actual molding process, whether it’s vacuum forming, pressure forming, or matched mold forming.
Cooling Section: After the sheet is formed, it must be cooled to maintain its shape. This section typically includes air or water cooling systems.
Trimming Station: In this section, the excess material is removed from the molded part to give it the final shape.
Control System: Modern thermoforming machines are equipped with advanced computer controls that monitor and adjust temperature, pressure, and forming speed for optimal results.
Single-Sided Thermoforming: The most basic form of thermoforming, where only one side of the plastic sheet is heated and formed into the mold.
Double-Sided Thermoforming: This process uses two molds, one on each side of the plastic sheet. It is used for more complex parts that require both sides to be formed simultaneously.
Twin Sheet Thermoforming: In this process, two sheets of plastic are heated and formed into separate molds, then brought together to create a hollow part. This method is ideal for making products like automotive parts that need to be lightweight and durable.
Thermoforming can be done with a wide range of plastic materials, each with its own advantages. The most common materials include:
Polystyrene (PS): Known for its ease of use and low cost, often used for disposable products.
Polyethylene (PE): Offers good impact resistance and is commonly used in packaging.
Polyvinyl Chloride (PVC): Durable and versatile, used in medical and food packaging.
Acrylonitrile Butadiene Styrene (ABS): Known for its toughness and used in applications such as automotive parts.
Polycarbonate (PC): A high-performance plastic known for its transparency and high heat resistance, used in applications like safety shields and lighting.
Cost Efficiency: Thermoforming is a cost-effective method, especially for medium to high volume production. The tooling costs are lower compared to other methods like injection molding.
Speed: The process is relatively quick, allowing for fast production cycles and increased productivity.
Material Versatility: Thermoforming machines can handle a wide range of materials, from low-cost plastics to high-performance polymers.
Precision: With modern control systems, thermoforming machines can produce highly accurate parts with complex geometries.
Thermoforming machines are used in a variety of industries to produce a wide range of products, including:

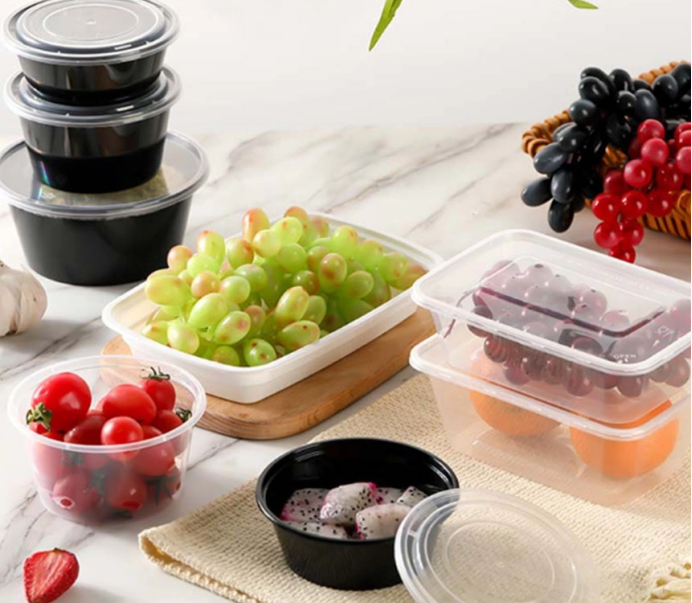

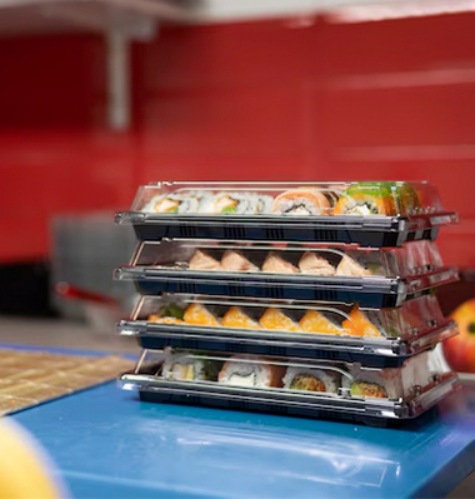

Packaging: Thermoforming is commonly used for making trays, clamshell packaging, and blister packs.
Automotive: Thermoforming is used to make lightweight automotive parts, including bumpers, interior panels, and dashboard components.
Medical: Medical packaging, including sterile trays and containers, is often made using thermoforming.

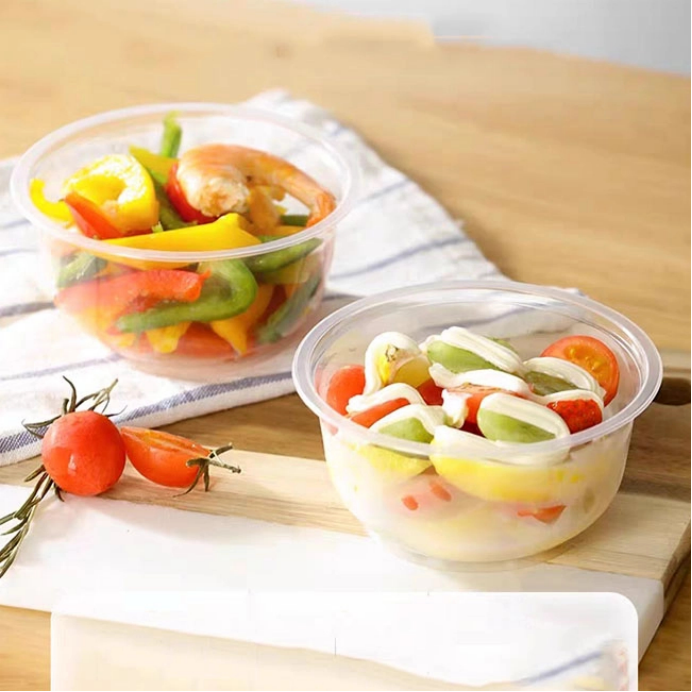

Consumer Products: Items like plastic containers, trays, and household goods are produced using thermoforming machines.
Vacuum forming uses suction to pull the heated plastic sheet into a mold, while pressure forming uses compressed air to push the plastic into the mold. Vacuum forming is generally used for simpler shapes, while pressure forming can create more intricate designs.
The time required for thermoforming depends on the material, the size of the part, and the complexity of the mold. Typically, the entire process can take anywhere from 30 seconds to several minutes per cycle.
Thermoforming is often more cost-effective than other methods like injection molding, especially for low- to medium-volume production runs. It is also ideal for producing large parts quickly.
Thermoforming machines are integral to modern manufacturing, providing the capability to create a wide range of plastic products with high precision and cost efficiency. By understanding the principles behind these machines—heating, forming, cooling, and trimming—manufacturers can optimize the thermoforming process for better performance, higher quality, and reduced costs. As the industry continues to evolve, advancements in automation, control systems, and materials will only increase the versatility and efficiency of thermoforming machines, making them a crucial part of the manufacturing landscape.
