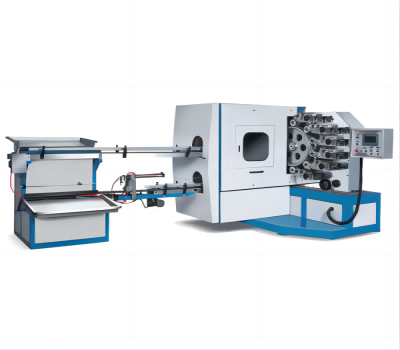

ECI100-6A
ECI
1.Multi-Color Printing Capability: The machine is equipped with six printing rollers, each corresponding to a specific color. These rollers transfer ink to the printing plate, which is then applied to the printing material. Through the coordination of these colors, the machine can print up to six colors simultaneously. For customers requiring additional metallic or specialty colors, different color effects can be achieved through color blending. Additionally, the machine includes a professional color management system to ensure precise and consistent color reproduction.
2.Integrated Drying System: The press features a built-in drying system that rapidly cures printing ink or pigments. During the drying process, operators can monitor the drying effect and adjust equipment parameters in real-time to meet specific requirements, ensuring optimal drying quality. Once the product exits the machine, the printing quality is immediately inspected to verify color accuracy and pattern alignment.
3.Flexible Adjustability: The machine allows for flexible adjustments to accommodate various product printing needs. Parameters such as printing speed, height, area, angle, and pressure can be customized to ensure the final product meets exact specifications. Additionally, the machine supports quick mold switching, enabling efficient transitions between different products and significantly improving production efficiency.
4.Automatic Control System: The press is equipped with an intelligent control system managed through a PLC controller and touchscreen interface. This system enables real-time monitoring and management of the printing process, allowing operators to detect and address machine conditions promptly. This reduces the likelihood of malfunctions and enhances overall operational efficiency.
5.High-Speed Printing and Versatility: The machine boasts a printing speed of 150-200 products per minute, with adjustments made based on customer and product requirements. It supports a printable product diameter range of 65-100mm, a printing height of 20-95mm, a printing diameter of 50-100mm, and a printing angle of 3°-13°. This versatility allows the machine to handle a wide range of products, from small jelly cups to larger ice cream tubs. Common items such as milk tea cups, jelly cups, and juice cups are all within its printing capabilities.
| Model | ECI100-6A |
| Printing color | 6 |
| Printing speed | 150-200pcs/min |
| Max.Printing height | 110mm |
| Min.Printing height | 20mm |
| Max.printing area diameter | 100mm |
| Min.printing area diameter | 50mm |
| Max.cup diameter | 110mm |
| Min.cup diameter | 65mm |
| Printing roller diameter | 100mm |
| prinring plate diameter | 600mm |
| printing angle | 3°-13° |
| Cup mould roller number | 8pcs |
| Air Pressure | 6-8Pa |
| UV dry rate power | 6KW |
| Voltage | 380V 50 HZ/3p 4Line |
| Main motor power | 7.5Kw |
| Total power | 15.5Kw |
| Dimension | L4500*W2500*H2200mm |
| Weight | 4.2T |

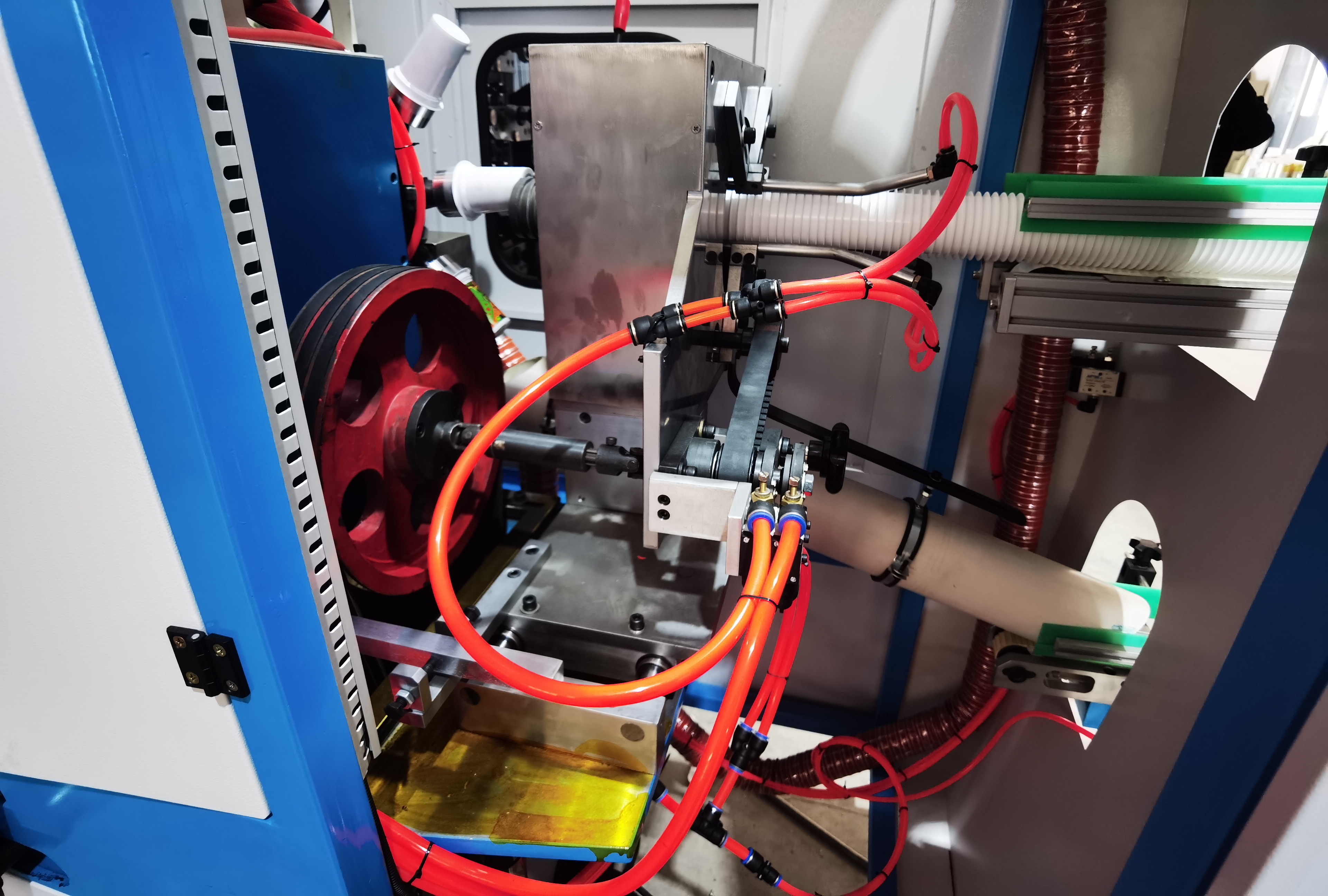

Cup inlet and outlet device

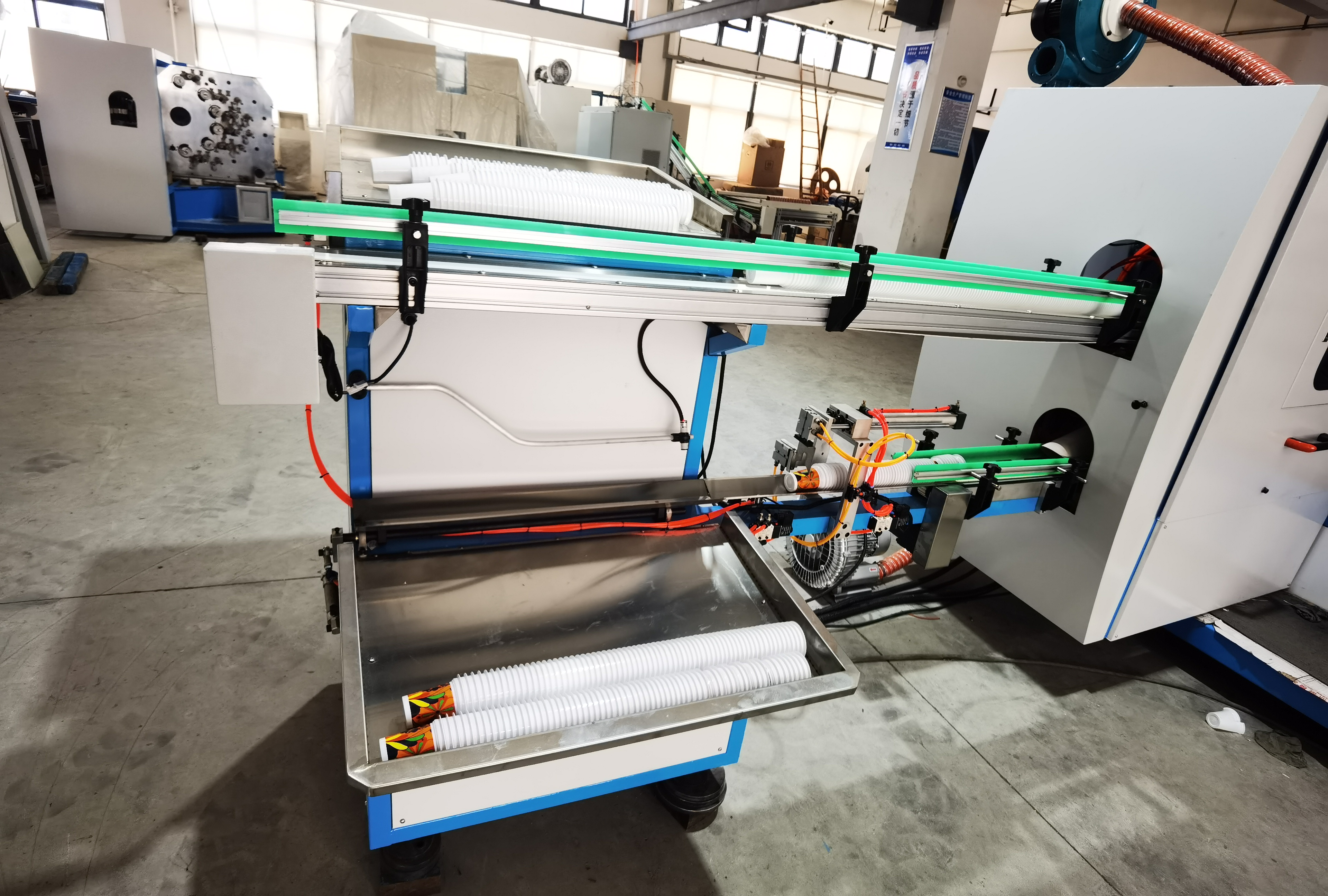

Cup feeding device

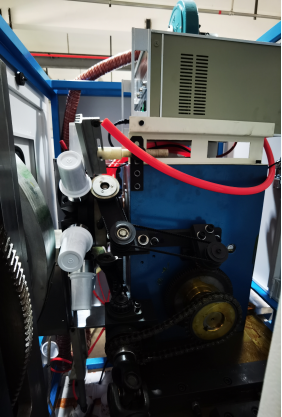

Cup distribution device

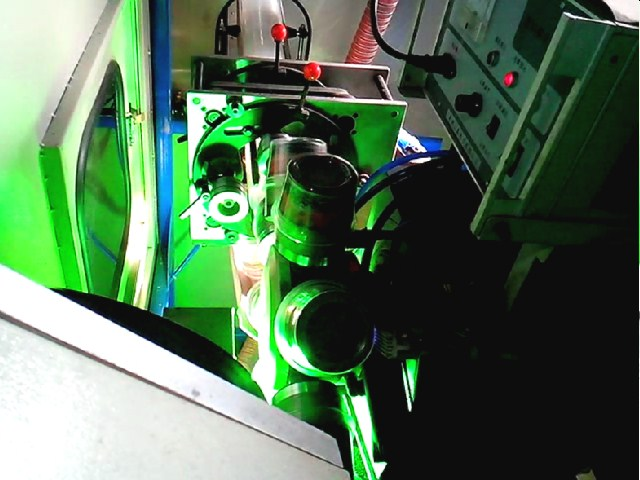

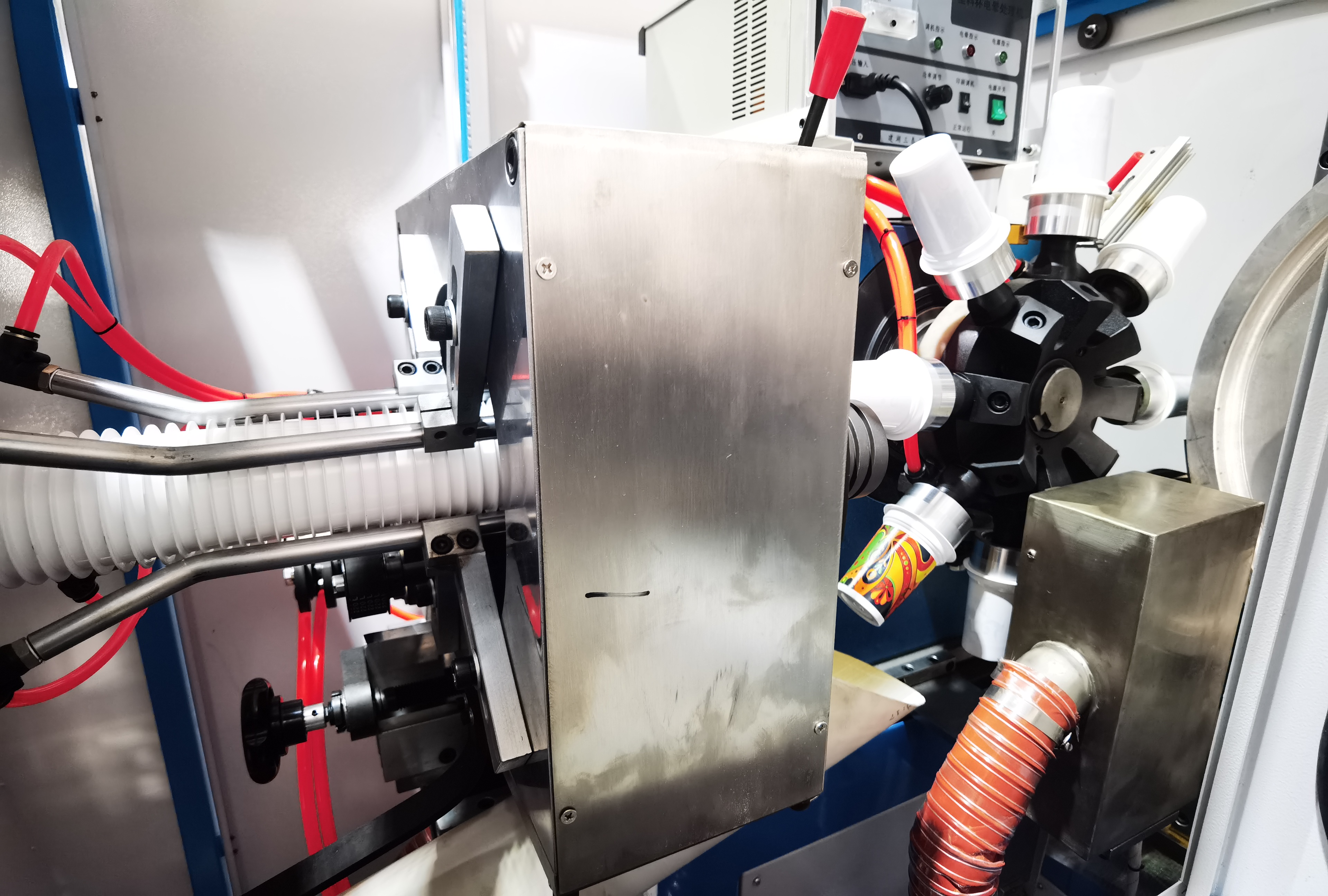

Corona processing device
Corona processing device

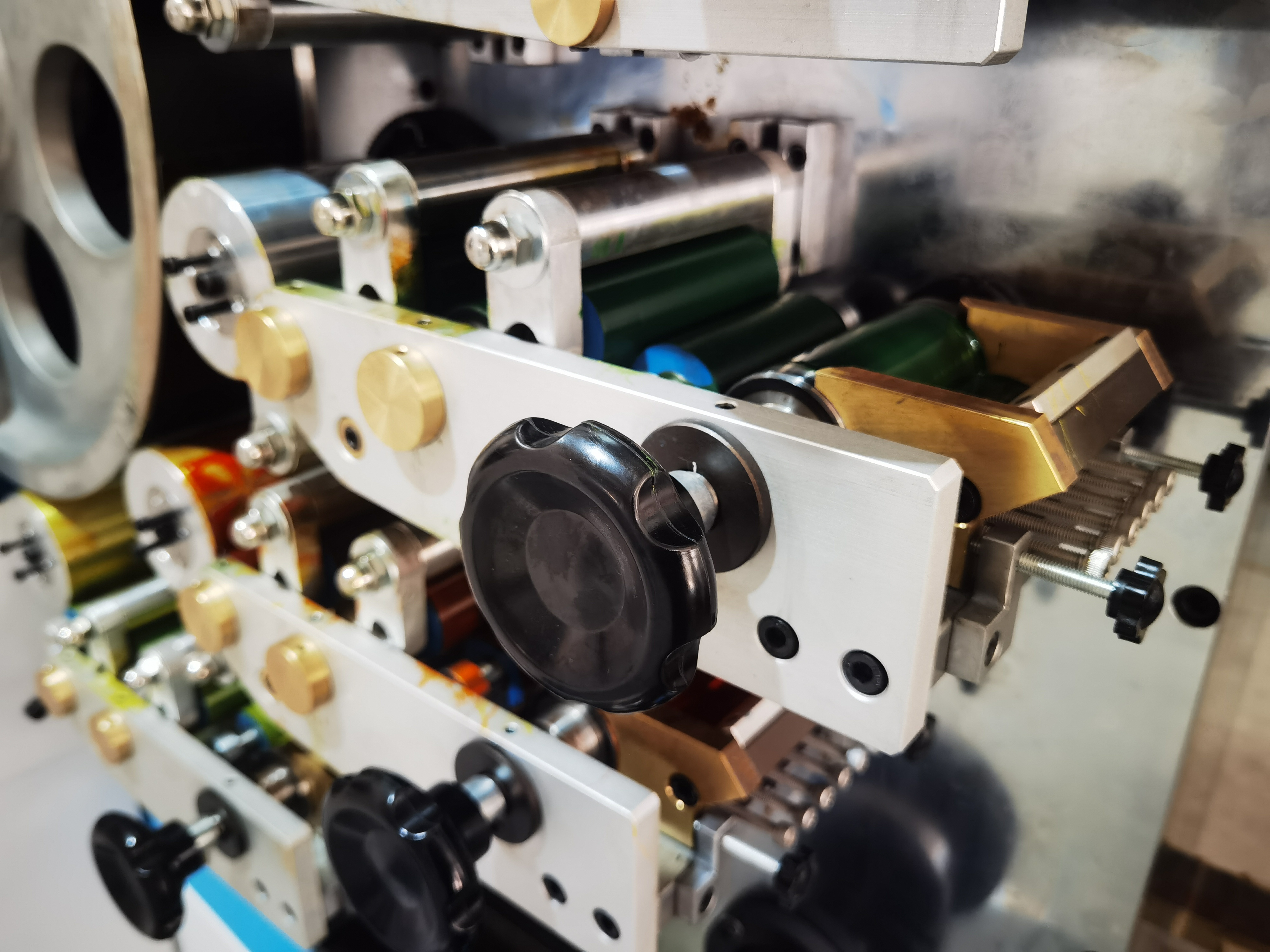

Color group plate roller

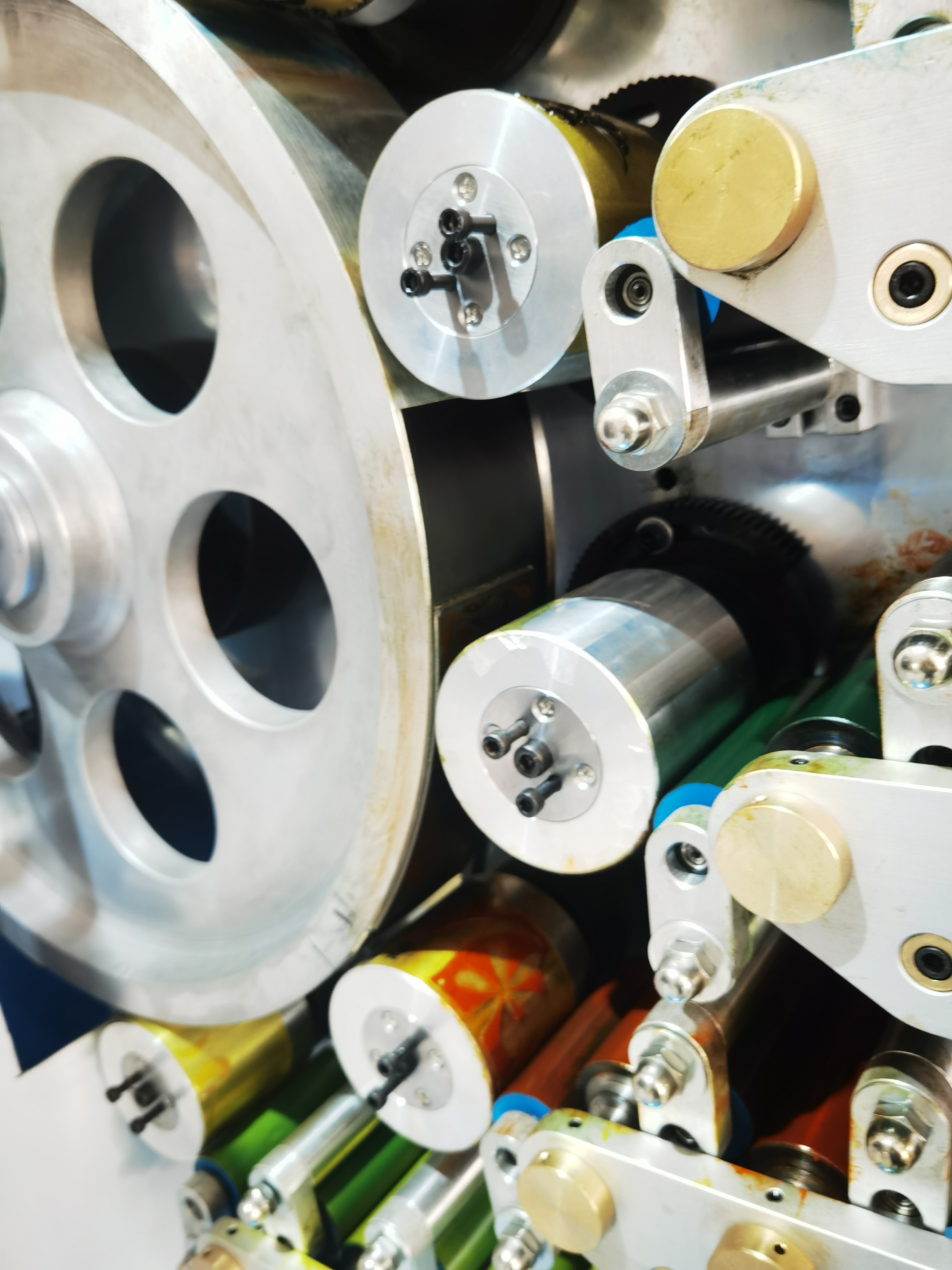

Color group plate roller

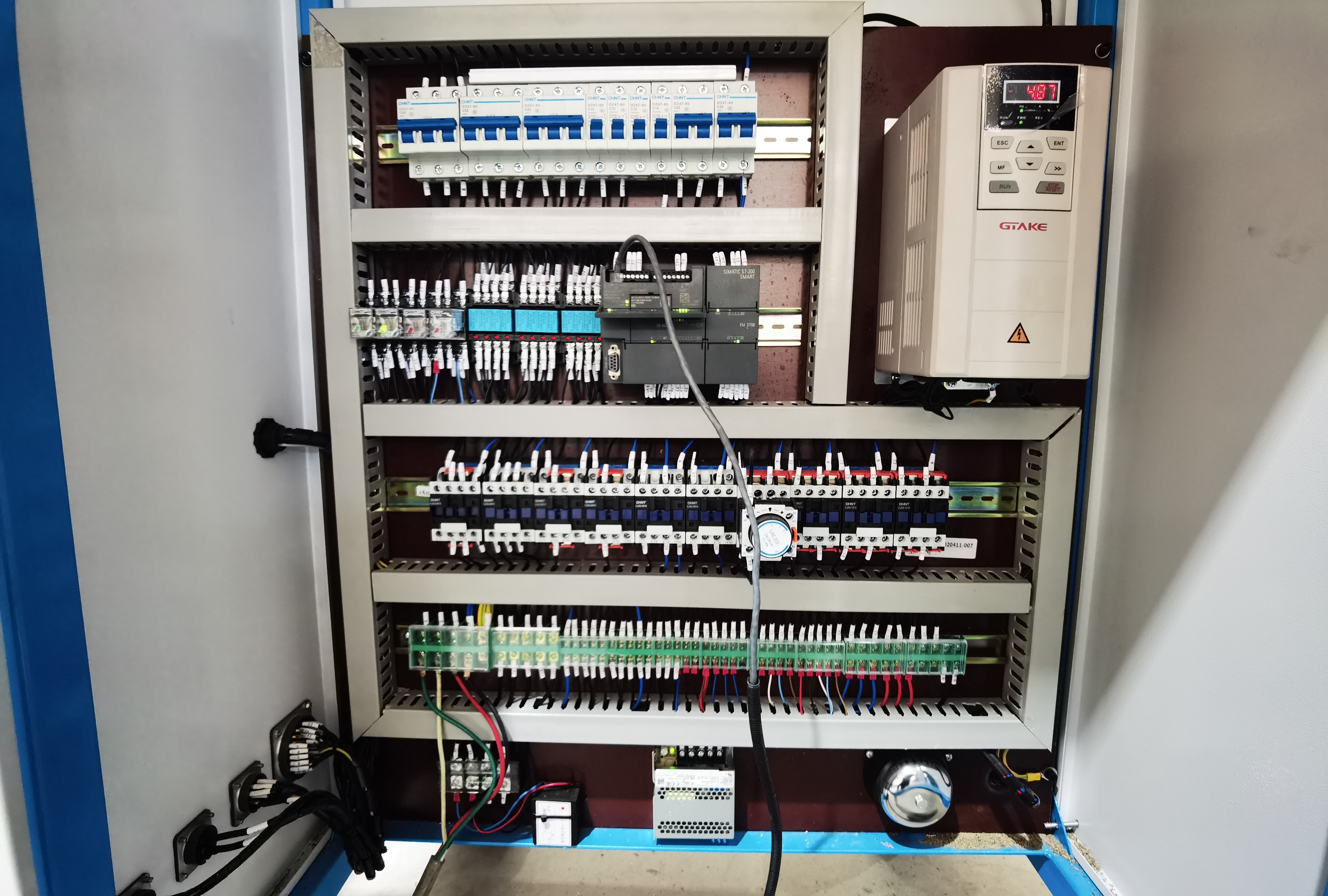

Electrical appliance configuration and assembly
1.Large-Scale Disposable Plastic Cup Manufacturing:
This machine is ideal for plastic cup manufacturers, offering an efficient printing solution to meet the growing demand for personalized customization. It enables the printing of various patterns and designs, enhancing advertising effectiveness and attracting consumer attention. With its high-precision printing capabilities, the machine ensures detailed and accurate reproduction of patterns and text, guaranteeing superior print quality. This not only elevates the product's appeal but also strengthens the company's brand development.
2.Customized Gifts and Promotional Campaigns:
The ECI-6A is also well-suited for creating customized gifts and promotional items. It allows businesses to produce personalized disposable plastic cups tailored to specific events or marketing needs, catering to a wide range of occasions and preferences.
3.Events and Celebrations:
Disposable plastic cups are commonly used at events, parties, and celebrations. The curved printing machine can print themed logos, event-specific designs, or sponsor advertisements on cups, providing a customized solution that aligns with the occasion's requirements.
4.Food and Beverage Industry:
Disposable plastic cups are widely utilized in the food and beverage sector, including fast-food restaurants, beverage shops, and cafes. The ECI-6A can print logos, brand slogans, and decorative patterns on cups, enhancing brand visibility and product attractiveness. This capability helps businesses stand out in a competitive market by offering visually appealing and branded products.
