Thermoforming is a widely used manufacturing process in which a plastic sheet is heated to a pliable forming temperature, molded to a specific shape, and then cooled to retain its form. This technique is commonly used in various industries to create products such as packaging, automotive parts, medical devices, and consumer goods. Thermoforming can be performed with different types of plastic materials and a variety of molds, depending on the intended use and desired product characteristics. In this article, we will explore the different types of thermoforming, the materials used, and the process involved.
Thermoforming involves heating a plastic sheet until it becomes soft and flexible, then shaping it by either stretching it into a mold cavity or pressing it against a mold surface. After the plastic cools, it hardens and takes the shape of the mold, completing the forming process. This manufacturing method is known for its efficiency, cost-effectiveness, and versatility in producing a wide range of products.
The key factors in thermoforming include the type of plastic used, the thickness of the material, the type of mold, and the specific thermoforming method chosen. The choice of these factors determines the final properties of the product, such as its strength, flexibility, and appearance.
Thermoforming can be broadly divided into two categories based on the thickness of the plastic sheet used: thick gauge (or heavy gauge) thermoforming and thin gauge thermoforming. Both methods involve heating and molding plastic sheets, but they differ significantly in the material thickness, processing conditions, and the types of products they are used to produce.
Thick gauge thermoforming involves the use of plastic sheets that are typically 0.060 inches (1.5mm) thick or more. This process is used to create durable, rigid products with higher strength and impact resistance. Common applications for thick gauge thermoforming include automotive parts (such as dashboards and bumpers), industrial products, and heavy-duty packaging.
The thick gauge thermoforming process often requires specialized machinery that can handle the heavier, thicker plastic sheets. The forming process typically involves more intense heating and higher pressure to ensure that the plastic fully conforms to the mold.

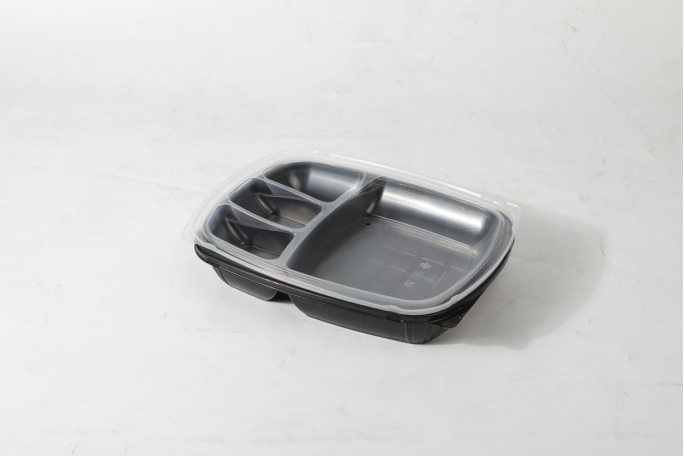

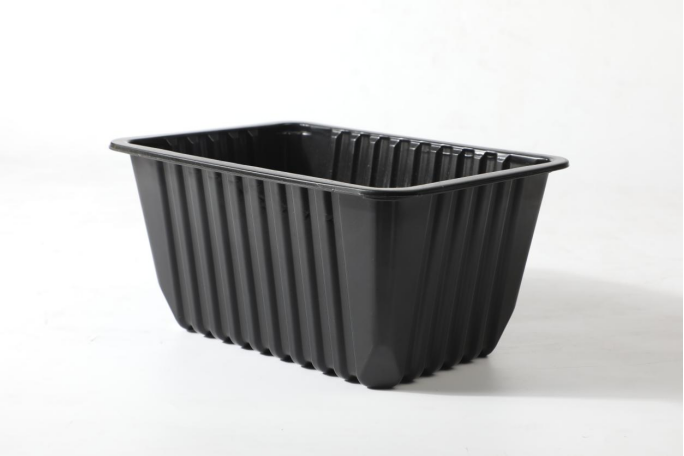

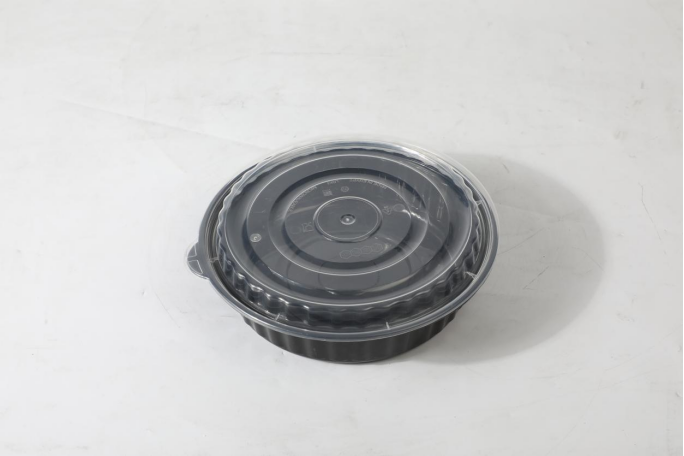

In contrast, thin gauge thermoforming uses plastic sheets that are less than 0.060 inches (1.5mm) thick. Thin gauge thermoforming is used for producing lightweight, flexible products that require less strength and durability. Common products made using thin gauge thermoforming include food packaging, medical trays, and disposable cups.
Thin gauge thermoforming is often faster and more cost-effective than thick gauge thermoforming, as it involves lower material costs and shorter production times. However, the products produced through thin gauge thermoforming are generally less rigid and durable than those made with thick gauge materials.
The thermoforming process can be broken down into several key steps, each of which plays a crucial role in ensuring the successful formation of the plastic product.
The first step in the thermoforming process is heating the plastic sheet to a temperature where it becomes soft and pliable. This is typically done using an oven or a specialized heating system that evenly heats the plastic sheet. The temperature must be carefully controlled to ensure that the plastic does not overheat and degrade.
Once the plastic sheet is heated to the proper temperature, it is placed over a mold or into a mold cavity. The molding process can be achieved through a variety of methods, including vacuum forming, pressure forming, and matched mold forming. The plastic is shaped by either applying vacuum pressure or using mechanical force to push the sheet into the mold cavity.
A positive tool, or male mold, is one where the shape of the final product is created by pushing the heated plastic over a protruding shape. The plastic sheet is stretched to cover the mold, and once it cools, it hardens into the shape of the mold.
In contrast, a negative tool, or female mold, involves pulling the heated plastic sheet into an indented mold cavity. The plastic is formed into the shape of the cavity, and it will cool to retain that shape.
After the plastic has been molded, it is trimmed to remove any excess material that does not conform to the mold. This is typically done using a cutting tool or a mechanical trimming system. The trimming step is essential for achieving the precise dimensions and finish required for the final product.
The choice of mold material is an important consideration in thermoforming, as it affects the molding process, product quality, and overall cost. Different types of molds are used depending on the specific application and production volume.
Wooden molds are often used in prototype or low-volume production runs. While they are easy to work with and relatively inexpensive, wooden molds are not as durable as metal molds and may wear out after repeated use. However, they can be useful for producing custom parts or for initial design testing.
Fiberglass molds are a step up from wooden molds in terms of durability and precision. They are often used for moderate-volume production runs and offer a balance between cost and performance. Fiberglass molds can produce high-quality parts with good surface finishes, and they are more resistant to wear and damage than wooden molds.
Aluminum molds are commonly used in high-volume production runs. Aluminum is a strong and durable material that can withstand the high temperatures involved in the thermoforming process. It provides good thermal conductivity, which helps to ensure even heating of the plastic sheet.
Cast aluminum molds are created by pouring molten aluminum into a mold cavity. These molds are typically used for larger parts or for parts that require high precision. Cast aluminum molds are durable and offer excellent heat distribution, making them suitable for both low- and high-volume production.
Fabricated aluminum molds are constructed by machining or welding pieces of aluminum together. These molds are often used for smaller parts or when a high degree of customization is required. Fabricated molds are more versatile than cast molds but may not offer the same level of precision.
There are several thermoforming methods used depending on the desired product characteristics, production volume, and material type.
Vacuum forming is the most common thermoforming method and is used for creating thin-gauge plastic products. In this process, the heated plastic sheet is placed over a mold, and a vacuum is applied to pull the sheet tightly against the mold. The plastic cools quickly and retains the shape of the mold.
Pressure forming is similar to vacuum forming but involves applying air pressure to push the plastic sheet into the mold. This method is often used for thicker gauge materials and for creating products that require more detail or higher strength.
Matched mold forming is a more advanced method where both the upper and lower halves of the mold are used to form the plastic sheet. This method allows for more precise control over the molding process and is typically used for creating products with more complex shapes or intricate details.
Twin sheet forming involves heating two plastic sheets simultaneously and then pressing them together in a mold cavity. This technique is used to create hollow products, such as containers or enclosures, that require a high level of structural integrity.
The choice of material is a critical factor in determining the properties of the final product. Thermoforming can be performed using a variety of plastic materials, each with its own set of advantages and applications.
Amorphous thermoplastics, such as polystyrene (PS), acrylic (PMMA), and polycarbonate (PC), are often used in thermoforming because they are easy to mold and provide excellent clarity. These materials are ideal for producing products that require transparency or a smooth, glossy finish.
Semi-crystalline thermoplastics, such as polypropylene (PP) and polyethylene (PE), are used in applications where strength and durability are more important than aesthetics. These materials offer good chemical resistance and are often used for packaging, automotive parts, and medical devices.
Despite its versatility and efficiency, thermoforming can present several challenges during production. Common issues include material warping, poor surface finish, and inconsistent molding.
Material Warping: Warping can occur when the plastic sheet is not heated evenly or when it cools too quickly. Proper temperature control and mold design can help mitigate this issue.
Poor Surface Finish: If the mold is not smooth or if the plastic is not adequately heated, the final product may have defects such as wrinkles or surface imperfections.
Inconsistent Molding: Variations in mold design, material thickness, and heating time can lead to inconsistent molding results, resulting in parts that do not meet specifications.
Thermoforming is a highly versatile and cost-effective manufacturing process used to produce a wide variety of products. The method chosen, along with the material and mold design, plays a critical role in determining the quality and functionality of the final product. By understanding the different types of thermoforming, the processes involved, and the materials used, manufacturers can make informed decisions to optimize their production methods.

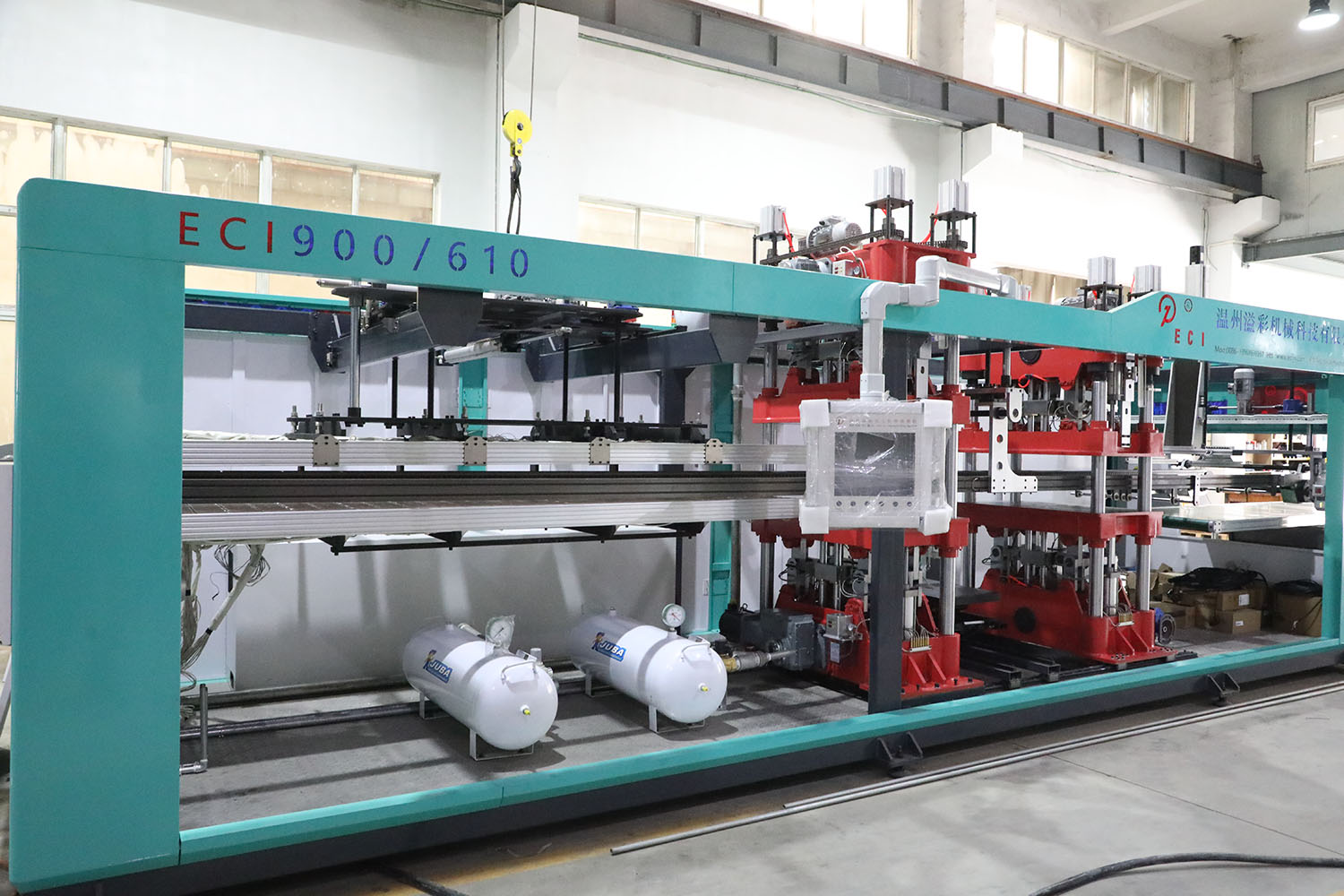

Explore Our Full Range of Thermoforming Machine Series
1. What is the difference between vacuum forming and pressure forming?
Vacuum forming uses a vacuum to pull the heated plastic sheet into the mold, while pressure forming uses air pressure to push the plastic sheet into the mold. Pressure forming is typically used for thicker materials and more detailed parts.
2. Can thermoforming be used for both small and large production runs?
Yes, thermoforming can be used for both small and large production runs. The method is highly versatile and can be adjusted for different production volumes.
3. What materials can be thermoformed?
Common materials used in thermoforming include polystyrene (PS), polypropylene (PP), polyethylene (PE), acrylic (PMMA), and polycarbonate (PC). Each material offers unique properties that make it suitable for different applications.
