Fully Automatic Large Multi-Station Thermoforming Machine for Food Packaging

Fully Automatic Large Multi-Station Thermoforming Machine for Plastic cup

Share to:

The ECI-900/610 is a three-station thermoforming machine that can perform multiple forming operations simultaneously, which not only increases production efficiency, but also reduces costs and saves space. Suitable for processing various materials, such as PET, BOPS, HIPS, PP, PLA, PVC and barrier materials, such as disposable lunch box lid, lunch box, cup, bowl, seedling tray, etc. In the process of multi-station thermoforming, the intelligent control system is used to meet the precise control of temperature, pressure, time and other parameters to ensure the quality and stability of the molding product. The working efficiency of the machine is 15-40strick/min, the sheet width is 400-850mm, and the maximum molding area is 780*610mm, which is often used to produce large quantities of plastic products.

Availability:

Quantity:



Inquire Add to Basket

Model:
ECI-900/610
Brand:
ECI

Fully Thermoforming Machine for Food Packaging

Major Construction Features of Fully Thermoforming Machine for Food Packaging

The heating system adopts advanced up and down 7 zone 25 way heating technology, each heating zone can be individually controlled, can quickly and evenly heat the mold, to ensure that the plastic material can fully flow and form.

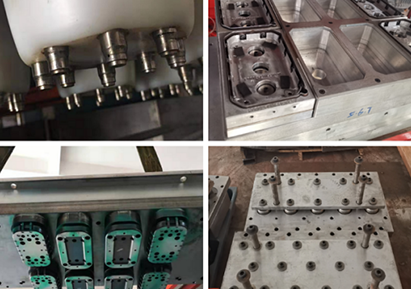

The molding mold is a key component of the multi-station thermoforming machine, which is made of high-strength and wear-resistant materials to ensure long-term stable production operation. The molding mold is designed to be quickly replaced to ensure the quality and accuracy of the molding product.

The automatic feeding system of the forming machine adopts advanced feeding device and control system, which can accurately and stably send plastic particles or particles into the mold to ensure the stability of the forming process

The automatic demoulding system can quickly and accurately remove the molded product from the mold to ensure production efficiency and product quality.

The control system of the multi-station thermoforming machine usually adopts advanced control technology such as PLC or industrial computer, which can realize the precise control and monitoring of the automated production process.

After forming, the product needs to be cooled and cured, and the multi-station thermoforming machine is usually equipped with an efficient cooling system to ensure the dimensional stability and quality of the product.

ECI-900/610 Three-station Thermoforming Machine Parameters

Model	ECI-900/610
Sheet material	PP PET PS PVC HIPS ABS
Sheet thickness	0.3-2.5mm
Sheet Width	400-850mm
Max.Forming area	780*610mm
Maximun forming depth of upper die	150mm
Maximun forming depth of under die	130mm
Sheet speed	15-40 Strokes/min
Heating rated power	180Kw
Upper path height	180Kw
Lower power molding	150KW
Mold height	450-550mm
Punching up power	150mm
Punching down power	180mm
Punching die power	300-400mm
Servo power on molding	7.5Kw
Servo power under molding	5.5KW
Punching servo power	7.5KW
Punching servo power	5.5KW
Tensile servo	5Kw
Feed servo	5.5KW
Stacking servo	2KW
Winding motor	3Kw
Air pressure	0.5-0.8Mpa
Voltage	380V 50Hz
Total power	275Kw
Dimension	L14mW2.4mH2.8m
Weight	10.5T

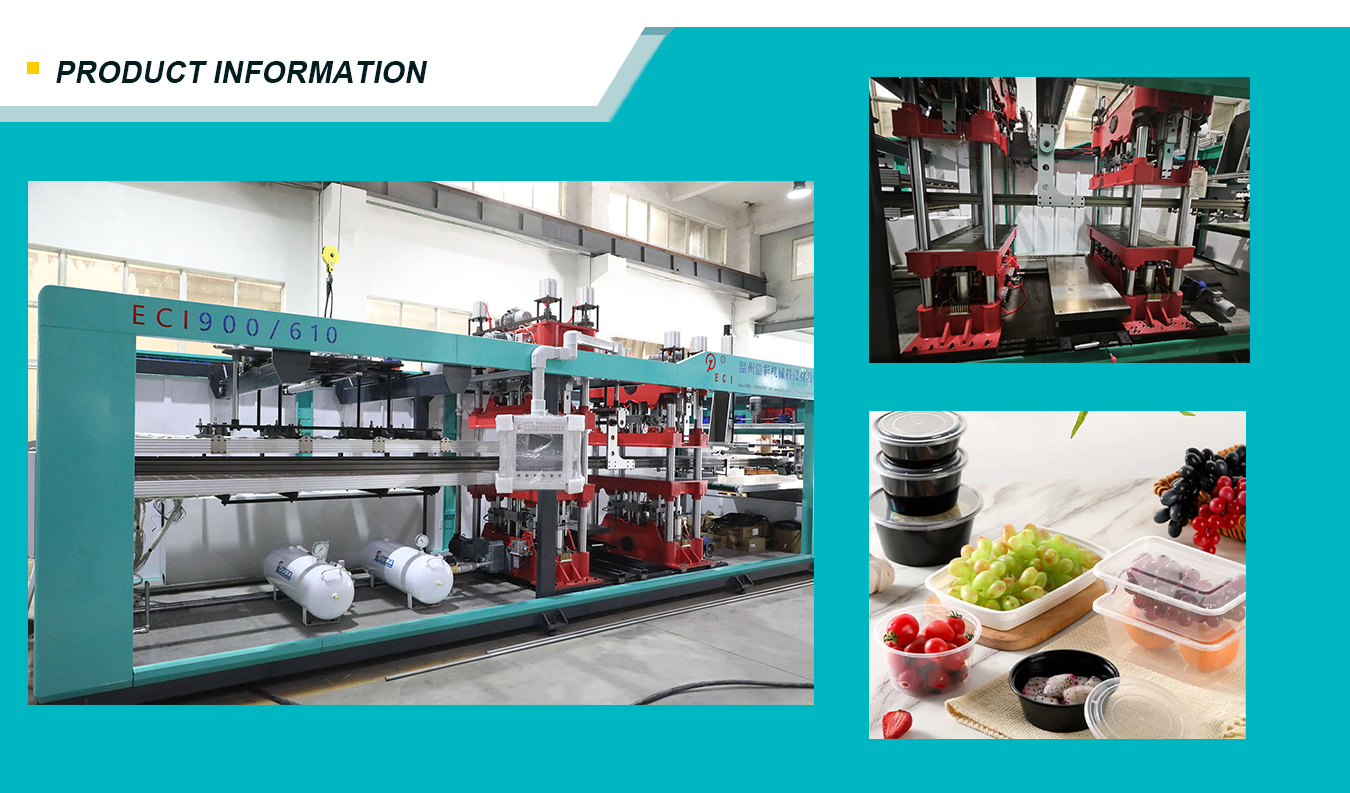

ECI-900/610 Three-station Thermoforming Machine Detailed

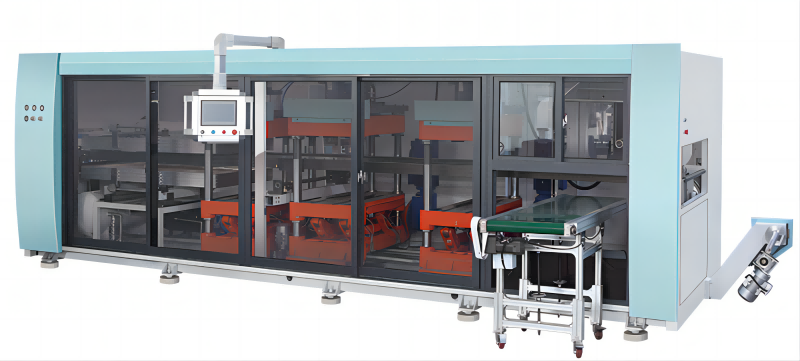

three-station thermoforming machine

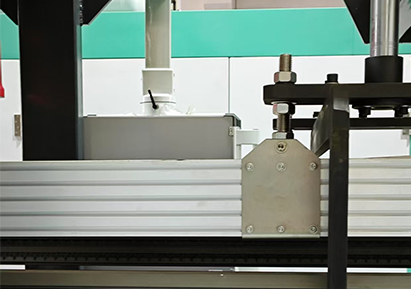

Electric Feeding of Fully Thermoforming Machine

Electric feeding, with a maximum load capacity of 800 kilograms of materials.

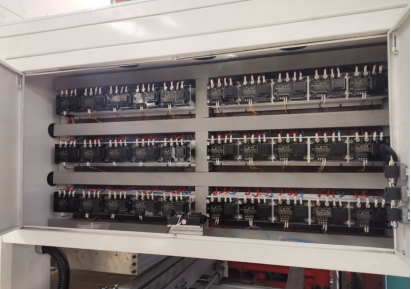

Intelligent Temperature Control System of Fully Thermoforming Machine

Intelligent temperature control system: Compared with traditional heating methods, our machine heats up faster and can start production within 3 minutes after startup. The temperature is stable, easy to adjust and can save about 10% of electricity

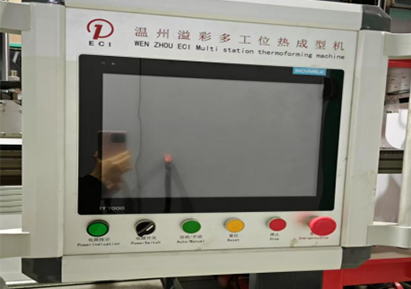

Touch Screen of Fully Thermoforming Machine

Touch screen: The operation of the machine is controlled by the PLC touch screen. The whole machine is equipped with the functions of storing formulas and electric adjustment. This function reduces the workload and technical requirements of the operators.

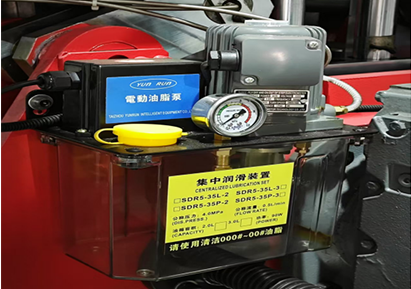

Automatic Lubrication Pump of Fully Thermoforming Machine

The automatic lubrication pump can extend the service life of the machine and ensure its operation without any problems.

Electric Furnace of Fully Thermoforming Machine

The electric furnace is made of heat-resistant stainless steel or pure aluminum. It features dual electric furnaces with five-stage heating. It uses imported heating wire bricks from Jiangsu Tianbao and imported high-temperature wires. It is equipped with an intelligent modular integrated temperature control system, which can automatically diagnose faults and store up to 1000 sets of data, ensuring safety and convenience

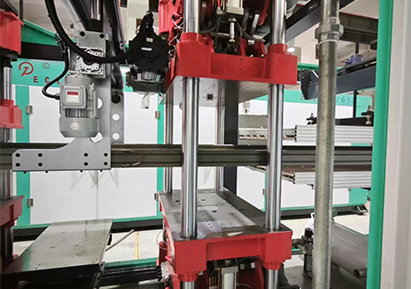

Cutting Station of Fully Thermoforming Machine

The cutting station drive is also driven by a full servo motor, which can effectively improve the productivity of the machine. While ensuring uniform cutting, the production speed of the machine can be faster, and the effective production efficiency can reach up to one minute at the fastest Thirty cycles.

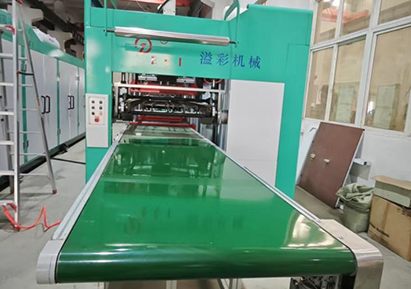

Accumulation Conveyor of Fully Thermoforming Machine

The accumulation conveyor is the core transmission device of modern continuous production lines, specially designed for multi-process integrated manufacturing scenarios.
